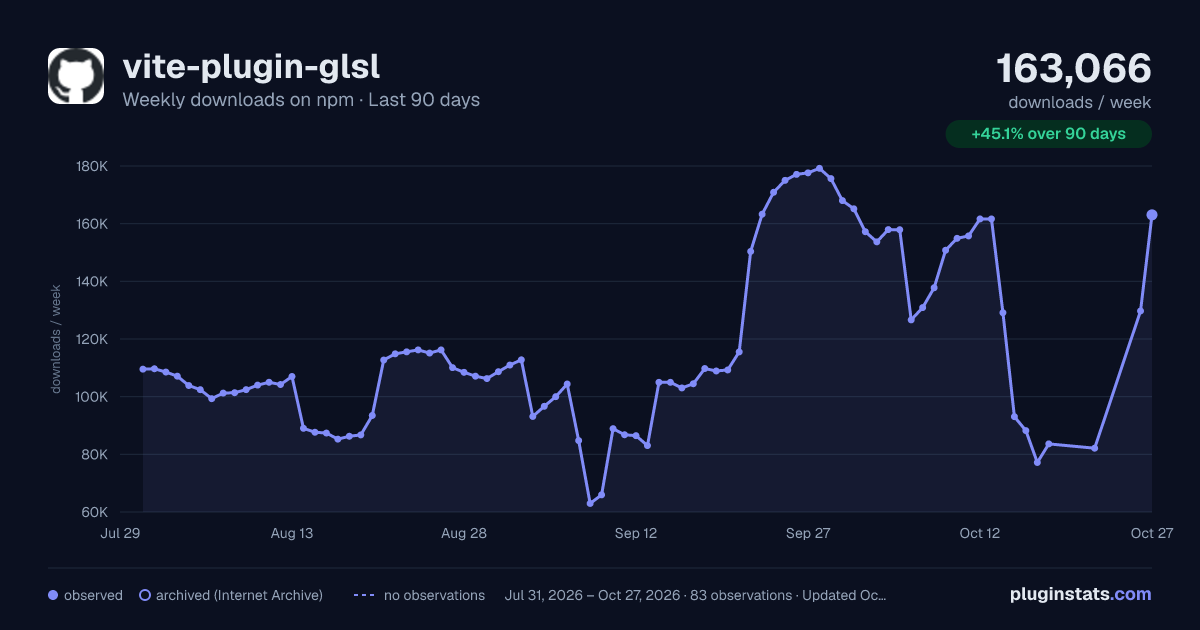

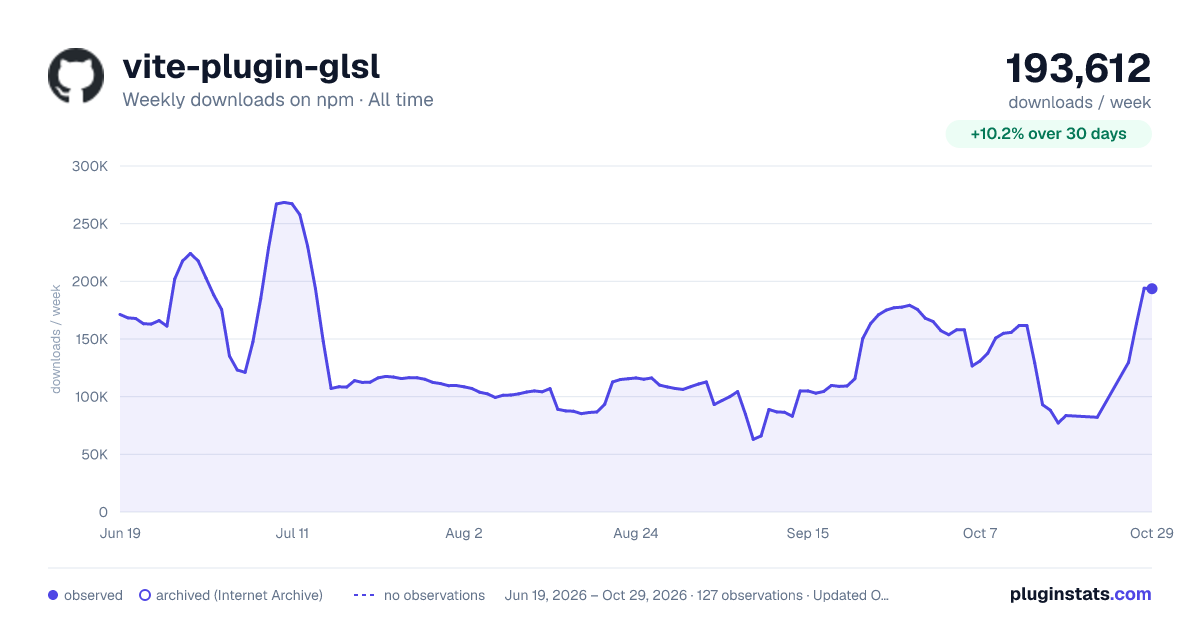

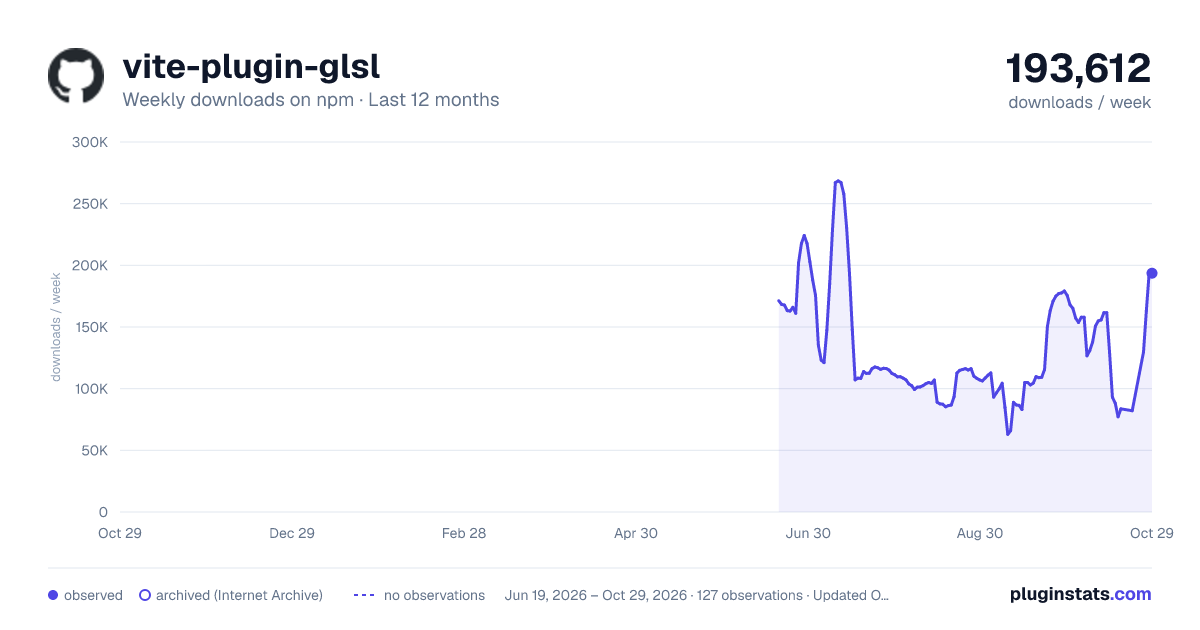

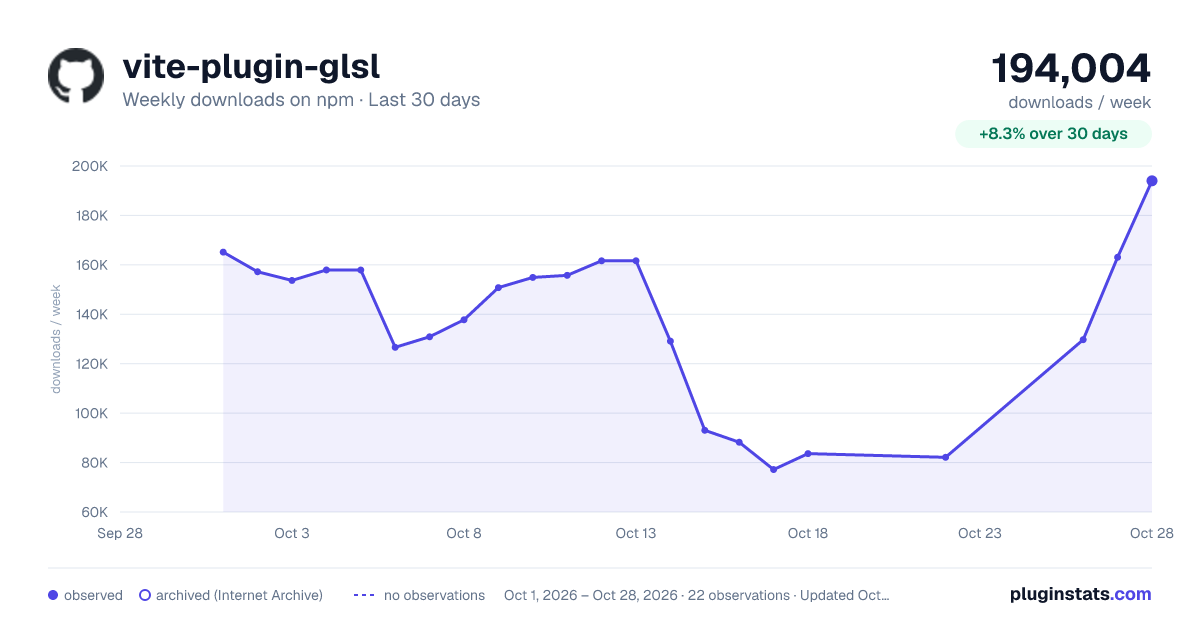

vite-plugin-glsl weekly downloads statistics

Vite Plugin GLSL

Import, inline (and minify) GLSL/WGSL/Slang shader files

Inspired by threejs-glsl-loader and vite-plugin-string, compatible with Babylon.js, three.js and lygia.

Installation

npm i vite-plugin-glsl --save-dev
# or
yarn add vite-plugin-glsl --dev
# or
pnpm add -D vite-plugin-glsl
# or
bun add vite-plugin-glsl --dev

Usage

// vite.config.js
import { defineConfig } from 'vite';
import glsl from 'vite-plugin-glsl';

export default defineConfig({
  plugins: [glsl()]
});

With TypeScript

Add extension declarations to your types in tsconfig.json:

{
  "compilerOptions": {
    "types": [
      "vite-plugin-glsl/ext"
    ]
  }
}

or as a package dependency directive to your global types:

/// <reference types="vite-plugin-glsl/ext" />

With Slang Shaders

Slang shaders are not supported out of the box; however, starting from version 1.6.0, it's quite easy to use them with this plugin. You'll need some minimal setup you can find here to copy-paste in your vite.config file. The idea is to use multiple importKeywords to include Slang shader chunks and convert the output shader to a web-friendly format (like WGSL) by using the onComplete option and the Slang compiler.

Default Options

glsl({
  include: [                      // Glob pattern, or array of glob patterns to import
    '**/*.glsl', '**/*.wgsl',
    '**/*.vert', '**/*.frag',
    '**/*.vs', '**/*.fs'
  ],
  exclude: undefined,             // Glob pattern, or array of glob patterns to ignore
  defaultExtension: 'glsl',       // Shader suffix to use when no extension is specified
  warnDuplicatedImports: true,    // Warn if the same chunk was imported multiple times
  removeDuplicatedImports: false, // Automatically remove an already imported chunk
  importKeywords: ['#include'],   // Keywords used to import shader chunks
  onComplete: undefined,          // Function to call with output shader
  minify: false,                  // Minify/optimize output shader code
  watch: true,                    // Recompile shader on change
  root: '/'                       // Directory for root imports
})

Example

root
├── src/
│   ├── glsl/
│   │   ├── chunk0.frag
│   │   ├── chunk3.frag
│   │   ├── main.frag
│   │   ├── main.vert
│   │   └── utils/
│   │       ├── chunk1.glsl
│   │       └── chunk2.frag
│   └── main.js
├── vite.config.js
└── package.json

// main.js
import fragment from './glsl/main.frag';

// main.frag
#version 300 es

#ifndef GL_FRAGMENT_PRECISION_HIGH
  precision mediump float;
#else
  precision highp float;
#endif

out vec4 fragColor;

#include chunk0.frag;

void main (void) {
  fragColor = chunkFn();
}

// chunk0.frag

// ".glsl" extension will be added automatically:
#include utils/chunk1;

vec4 chunkFn () {
  return vec4(chunkRGB(), 1.0);
}

// utils/chunk1.glsl

#include chunk2.frag;
#include ../chunk3.frag;

vec3 chunkRGB () {
  return vec3(chunkRed(), chunkGreen(), 0.0);
}

// utils/chunk2.frag

float chunkRed () {
  return 0.0;
}

// chunk3.frag

float chunkGreen () {
  return 0.8;
}

Will result in:

// main.frag
#version 300 es

#ifndef GL_FRAGMENT_PRECISION_HIGH
  precision mediump float;
#else
  precision highp float;
#endif

out vec4 fragColor;

float chunkRed () {
  return 0.0;
}

float chunkGreen () {
  return 0.8;
}

vec3 chunkRGB () {
  return vec3(chunkRed(), chunkGreen(), 0.0);
}

vec4 chunkFn () {
  return vec4(chunkRGB(), 1.0);
}

void main (void) {
  fragColor = chunkFn();
}

Change Log

• Starting from v1.6.0 this plugin supports onComplete callback function to customize output shaders.

• Starting from v1.5.2 this plugin uses vite.transformWithOxc function when available.

• Starting from v1.5.1 this plugin is fully compatible with vite^7.0.0.

• Starting from v1.5.0 this plugin supports a custom importKeyword to include shader chunks.

• Starting from v1.4.0 compress option was renamed to minify and now it allows a promise callback.

• Starting from v1.3.2 this plugin allows to automatically remove already imported chunks with the removeDuplicatedImports option set to true.

• Starting from v1.3.1 this plugin is fully compatible with vite^6.0.0.

• Starting from v1.3.0 this plugin will not remove comments starting with ///, unless compress option is set to true.

• Starting from v1.2.0 this plugin is fully compatible with vite^5.0.0.

• Starting from v1.1.1 this plugin has a complete TypeScript support. Check "Usage" > "With TypeScript" for more info.

• Starting from v1.0.0 this plugin is fully compatible with vite^4.0.0.

• Starting from v0.5.4 this plugin supports custom compress callback function to optimize output shader length after all shader chunks have been included.

• Starting from v0.5.0 this plugin supports shaders hot reloading when watch option is set to true.

• Starting from v0.4.0 this plugin supports chunk imports from project root and root option to override the default root directory.…
