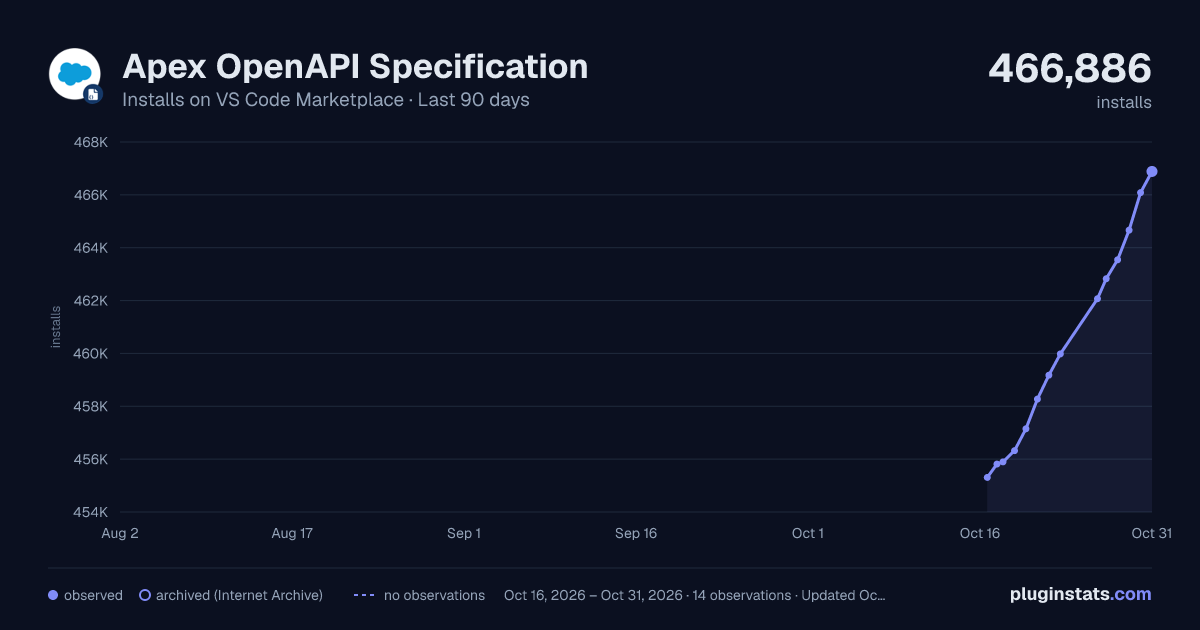

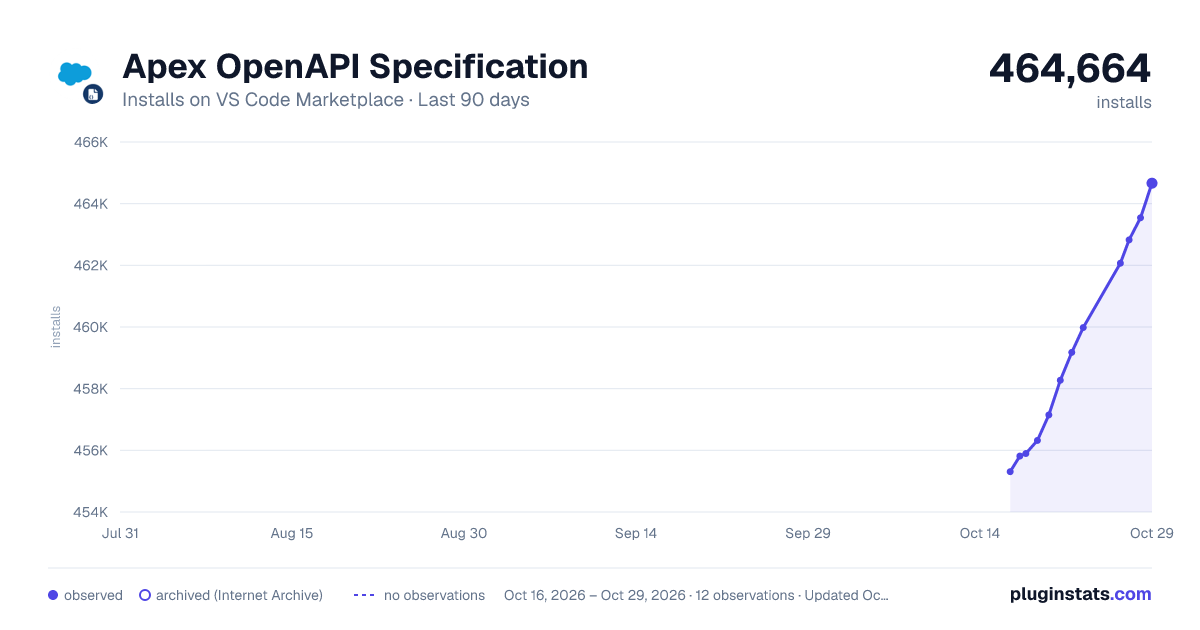

Apex OpenAPI Specification installs statistics

Apex OpenAPI Specification Extension

This extension provides OpenAPI Specification (OAS) generation capabilities for Apex REST and AuraEnabled classes in Salesforce development.

Features

• Generate OpenAPI Documents: Create OpenAPI v3 specifications from Apex classes annotated with @RestResource or @AuraEnabled • Validate OpenAPI Documents: Validate existing OpenAPI documents against Salesforce-specific rules • Spectral Validation: Uses Spectral to ensure compliance with OpenAPI standards and Salesforce best practices

Commands

• SFDX: Create OpenAPI Document from This Class - Generate an OpenAPI document from an Apex class • SFDX: Validate OpenAPI Document - Validate an existing OpenAPI document

Requirements

• Salesforce CLI extension • Apex extension • A Salesforce DX project with an authenticated org

REST Generation Requirements

For REST classes (@RestResource with @HttpGet, @HttpPost, etc.): • An LLM (AI model) service must be available through the VS Code service provider. This is supplied by an extension that provides this service; if no provider has registered the service, REST generation fails with a clear error.

AuraEnabled Generation Requirements

For AuraEnabled classes (@AuraEnabled annotation): • Requires only an authenticated org connection (no AI/LLM required)

Configuration

| Setting | Type | Default | Description |

| salesforcedx-vscode-apex-oas.general.class.access-modifiers | array | ["global", "public"] | Class access modifiers eligible for OAS generation. | | salesforcedx-vscode-apex-oas.general.method.access-modifiers | array | ["global", "public"] | Method access modifiers eligible for OAS generation. | | salesforcedx-vscode-apex-oas.general.property.access-modifiers | array | ["global", "public"] | Property access modifiers eligible for OAS generation. | | salesforcedx-vscode-apex-oas.generation_strategy | string | "LEAST_CALLS" | Strategy for OAS generation. Options: "LEAST_CALLS", "MOST_CALLS". | | salesforcedx-vscode-apex-oas.generation_include_schema | boolean | false | Include OpenAPI schema in generation. | | salesforcedx-vscode-apex-oas.generation_output_token_limit | number | 750 | Maximum number of tokens for generation output. | | salesforcedx-vscode-apex-oas.enableRestOASGen | boolean | false | Enable OpenAPI document generation for Apex REST (@RestResource) classes. Disabled by default because it depends on an external AI model service; AuraEnabled classes are unaffected. | | salesforcedx-vscode-apex-oas.extensionLevelNotifications | string | — | Controls notifications for all Apex OAS commands. Overrides the global salesforcedx-vscode-services.notifications setting. Individual commands can be further overridden in salesforcedx-vscode-apex-oas.commandLevelNotifications. | | salesforcedx-vscode-apex-oas.commandLevelNotifications | object | — | Per-command notification settings (Create OpenAPI Document uses progressToastSuccessToast, progressToastSuccessOff, progressStatusBarSuccessStatusBar, or progressStatusBarSuccessOff; Validate OpenAPI Document uses successToast or successStatusBar). Overrides extension-level setting for specific commands. |

Dependencies

This extension depends on:

• salesforce.salesforcedx-vscode-apex • salesforce.salesforcedx-vscode-core

REST class generation additionally needs an LLM (AI model) service registered with the VS Code service provider — obtained at runtime through the service provider rather than declared as a hard extension dependency, and is not required for AuraEnabled class generation.

Note: As of A4V v4.1.0 "Agentforce Vibes" (2026-06-13), the LLM integration required for OAS generation is temporarily unavailable. v4 removed the salesforcedx-einstein-gpt.isEnabled context key that gates the OAS commands' visibility (so they no longer appear) and the getLLMServiceInstance command that generation invokes. E2E tests are skipped pending migration off the A4V LLM service.

Activation

This extension activates on demand when you run one of its commands. It does not activate automatically at workspace startup.

Resources

• Salesforce Extensions Documentation • GitHub Repository

Description from the VS Code Marketplace listing.
