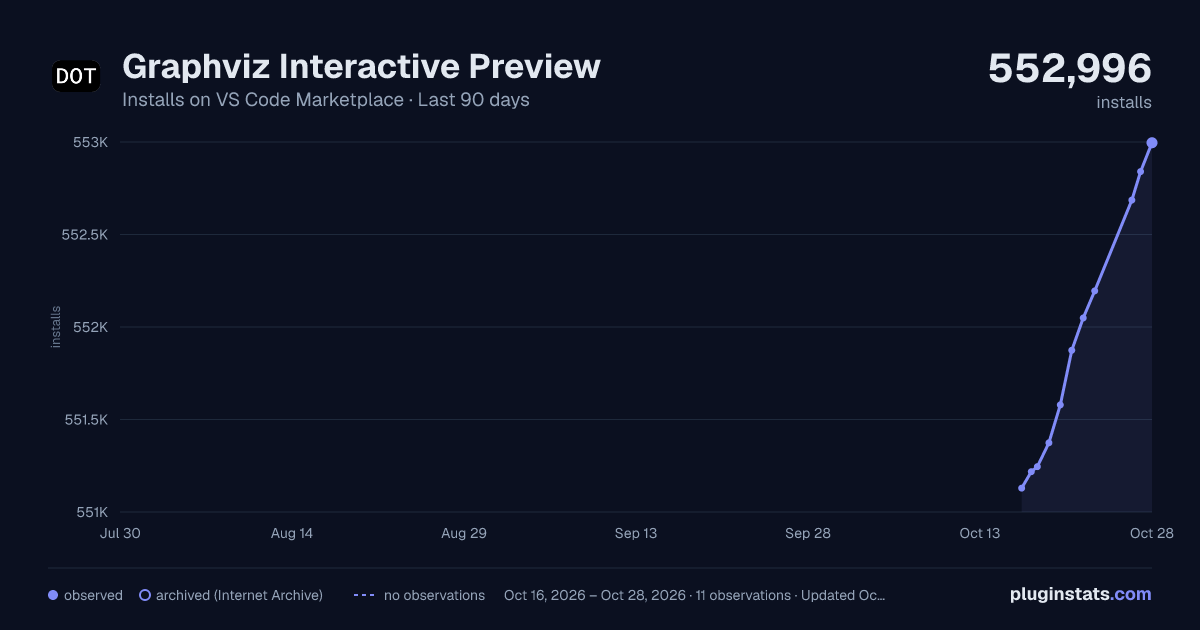

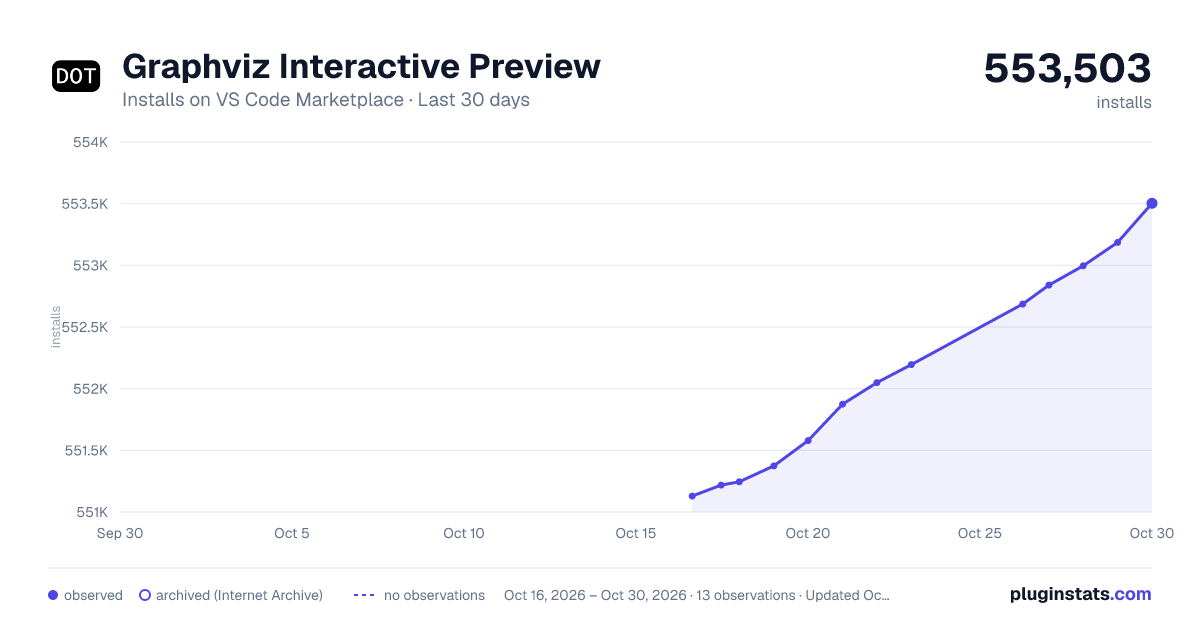

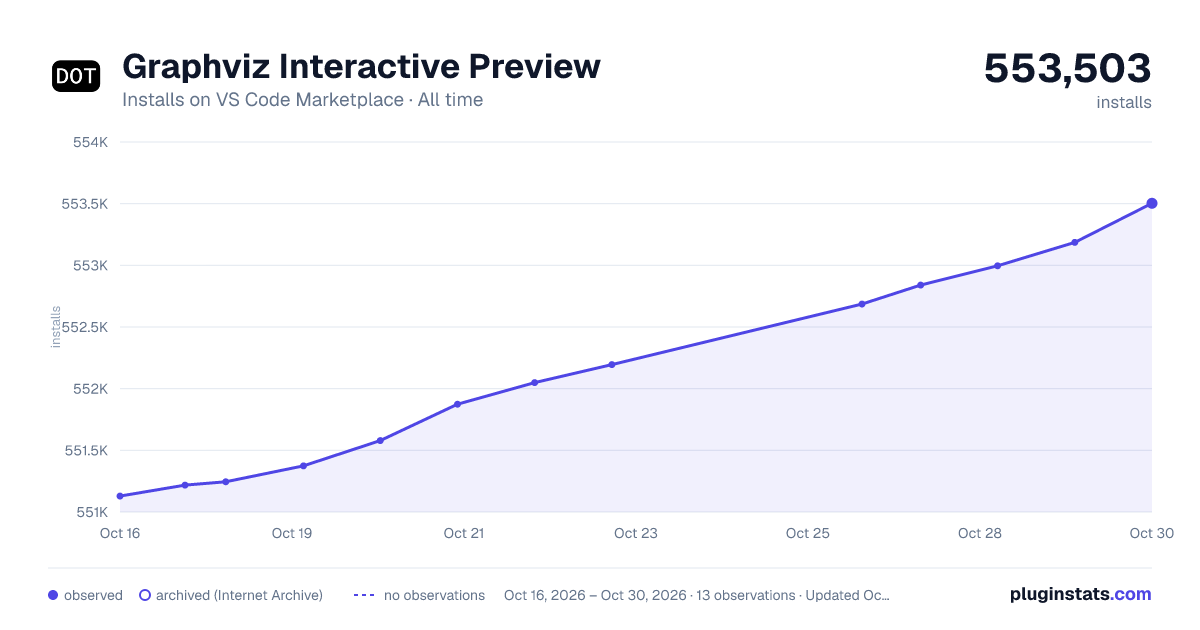

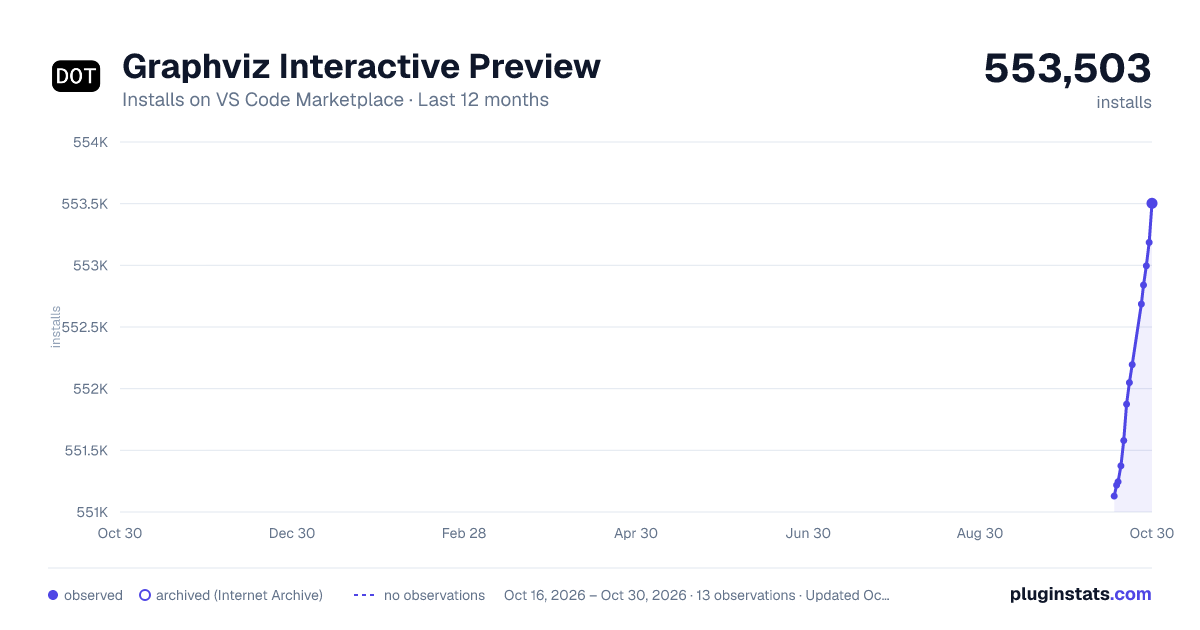

Graphviz Interactive Preview installs statistics

<img width="200" alt="get in touch with Consensys Diligence" src="https://user-images.githubusercontent.com/2865694/56826101-91dcf380-685b-11e9-937c-af49c2510aa0.png"><br/> ^{[ 🌐 📩 🔥 ]}<br/><br/>

Graphviz Interactive Preview (Visual Studio Code Extension)

A VSCode extension that provides syntax highlighting, snippets, and an interactive, zoom-, pan- and searchable, live preview with edge tracing for graphs in Graphviz / dot format.

Language Features

• Graphviz/Dot Language Support / Syntax Highlighting and Snippets (thanks @joaompinto)
• AutoCompletion
• Rename Symbols
• Find References of node IDs
• Color selection via Color decoration
• Hover information for settings
• Shows syntax errors (only available when the preview of the document is active)

<img width="472" alt="image" src="https://user-images.githubusercontent.com/2865694/163130099-30227a10-e471-4fe0-9564-1d3338f09726.png"> <img width="303" alt="image" src="https://user-images.githubusercontent.com/27259/161251962-6aa3792c-70da-4f48-a9fa-5933012fede2.png"> <img width="576" alt="image" src="https://user-images.githubusercontent.com/2865694/163143275-05f0547b-ce69-43ce-af66-ed76b1f7aa88.png">

Interactivity Features

• Renders dot/Graphviz sources in an interactive live preview.
• Updates preview as you type.
• Search for nodes in the graph.
• Export the graph as svg or dot.
• Interactive edge tracing. Click on a node to highlight incoming and outgoing edges (ESC to unselect). The Direction of the highlighting can be changed (options: single, upstream, downstream, bidirectional)
• Configurable render engine, render options & tracing preference: e.g. transitionDelay, transitionDuration.

<img width="576" alt="image" src="https://user-images.githubusercontent.com/27259/161146471-6fb269df-5e3a-4f71-ab6e-37391b33c09c.png">

Other features

• Available on github.dev, vscode.dev
• Developers: you can pass a callback function that receives the webPanel when executing the preview command. This allows you to override functionality that is provided by the webPanel, like handlers for click/dblClick events.

How to preview

Open a Graphviz/Dot file in the active editor and use either of the following methods to render the preview:

• (a) open the command prompt (<kbd>cmd</kbd>+<kbd>shift</kbd>+<kbd>p</kbd>) and type > graphviz preview
• (b) click the <img width="35" alt="image" src="https://user-images.githubusercontent.com/2865694/155575822-720a76d0-68a8-481f-92b4-752d8c6e6242.png"> button in the editor title
• (c) from the editor window's context menu, select Preview Graphviz / Dot (beside)

<img width="200" alt="image" src="https://user-images.githubusercontent.com/2865694/154029863-7d7dd582-2b9a-480c-b0de-bcccb9136ae4.png"> <img width="400" alt="image" src="https://user-images.githubusercontent.com/2865694/155575303-8c429902-5599-47cf-855f-c9694a32b829.png">

Render Examples

<a href="https://user-images.githubusercontent.com/2865694/151163516-fbb956ab-607c-45dc-8c83-db3477ceccf9.png"><img width="250" alt="semantic-arg-dark" src="https://user-images.githubusercontent.com/2865694/151163516-fbb956ab-607c-45dc-8c83-db3477ceccf9.png" ></a> <a href="https://user-images.githubusercontent.com/2865694/151163623-8714f717-a4ed-428c-bd87-213c8035892d.png"><img width="250" alt="semantic-arg-dark" src="https://user-images.githubusercontent.com/2865694/151163623-8714f717-a4ed-428c-bd87-213c8035892d.png" ></a> <a href="https://user-images.githubusercontent.com/2865694/151163732-0a0113c6-7328-4345-b71a-7df782aa0387.png"><img width="250" alt="semantic-arg-dark" src="https://user-images.githubusercontent.com/2865694/151163732-0a0113c6-7328-4345-b71a-7df782aa0387.png" ></a> <a href="https://user-images.githubusercontent.com/2865694/151163840-ceb6d75e-983d-4126-9169-6431d1dbfe1d.png"><img width="250" alt="semantic-arg-dark" src="https://user-images.githubusercontent.com/2865694/151163840-ceb6d75e-983d-4126-9169-6431d1dbfe1d.png" ></a>

Developer Notes

Note:❗v0.0.8 introduced a breaking change: the render command was renamed from interactive-graphviz.preview.beside to graphviz-interactive-preview.preview.beside

The extension can be set run on development machines with

npm run watch

In order to test the extension as a web extension you have to start

npm run open-in-browser

Interact with this extension

• add graphviz-interactive-preview to your package.json extension dependencies.

{
    "name": "your-extension",
    "extensionDependencies": ["tintinweb.graphviz-interactive-preview"],
}
```…
