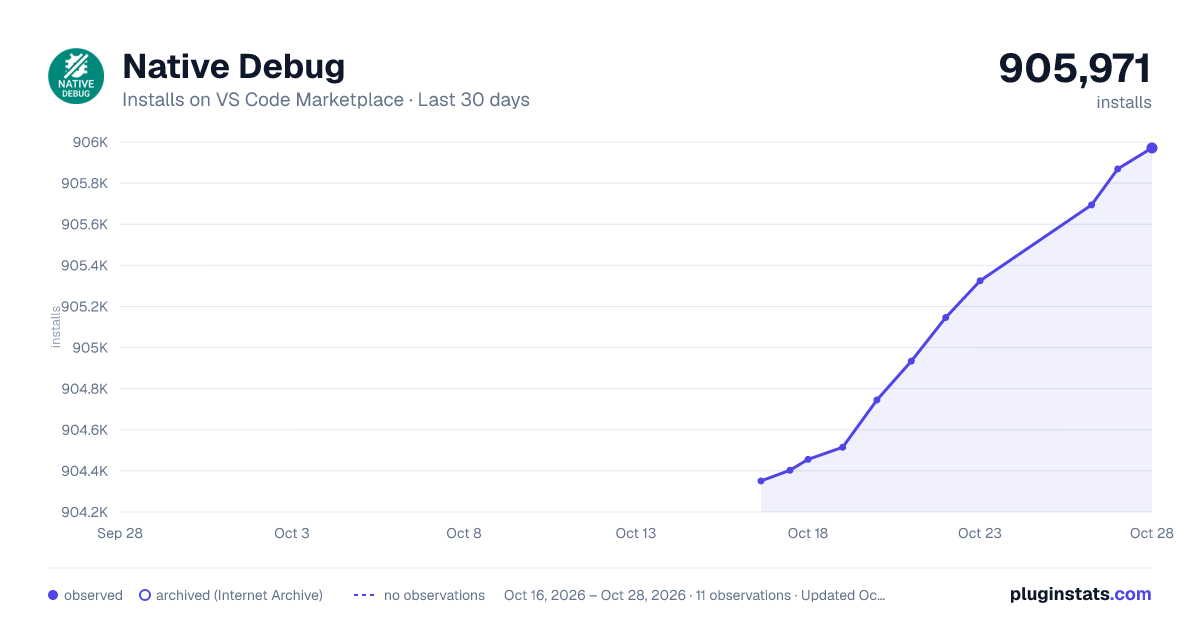

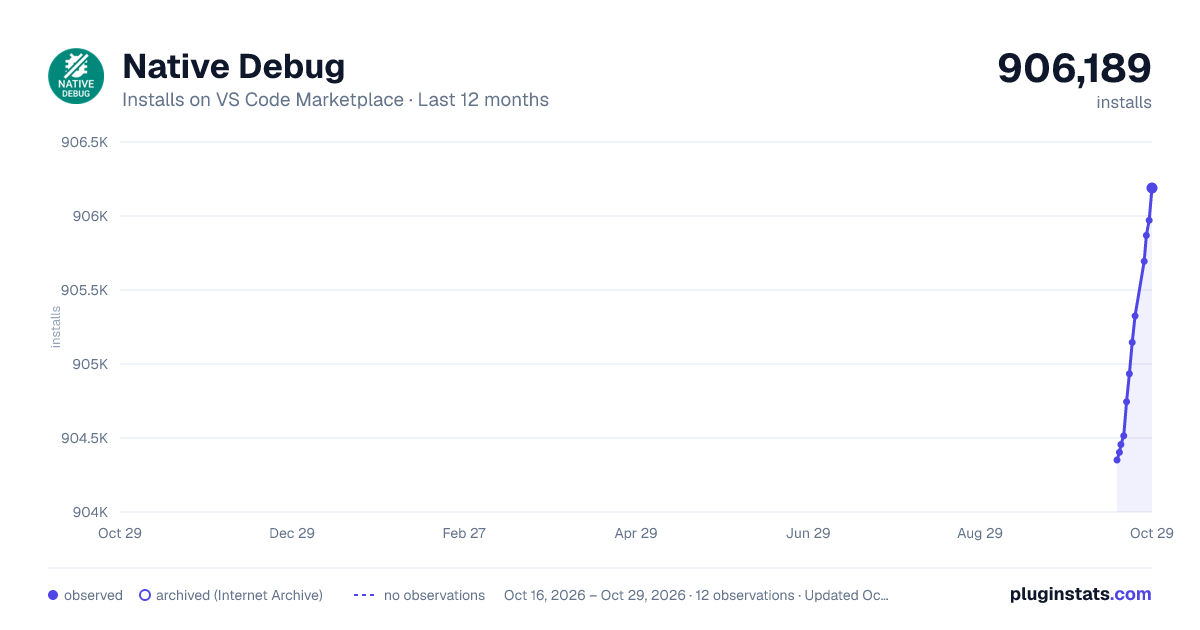

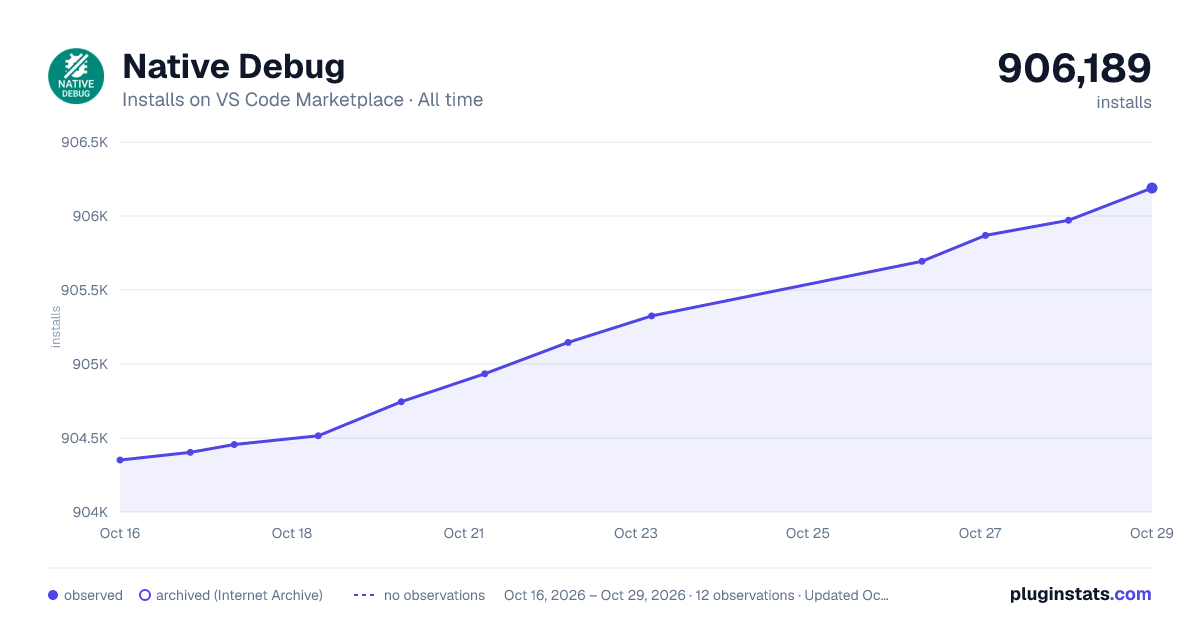

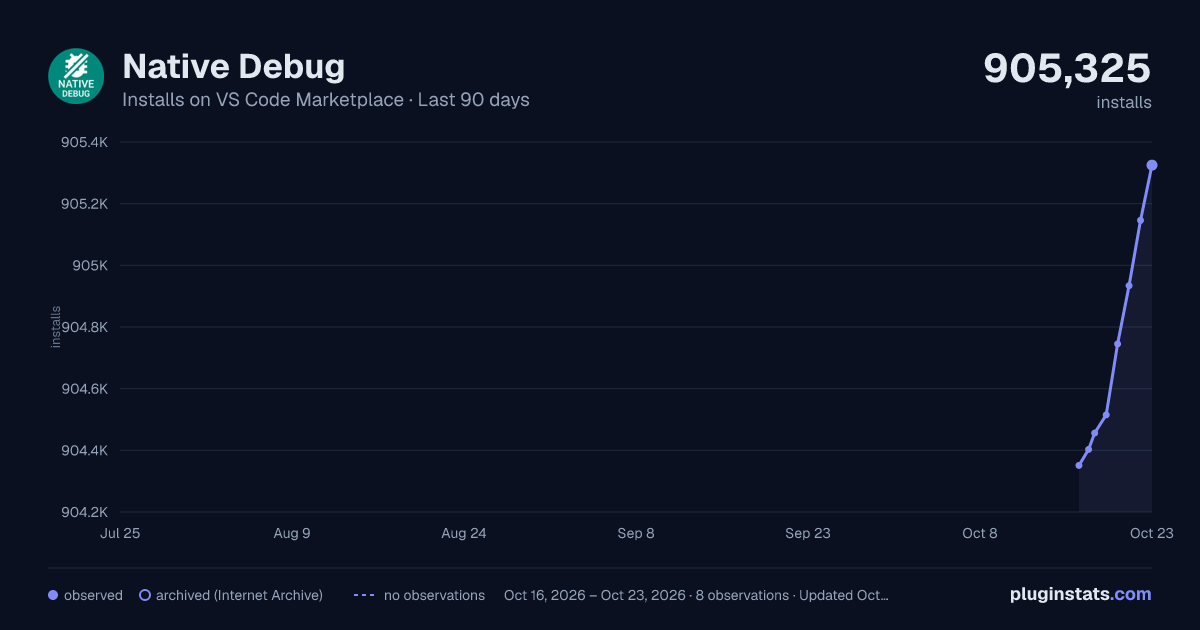

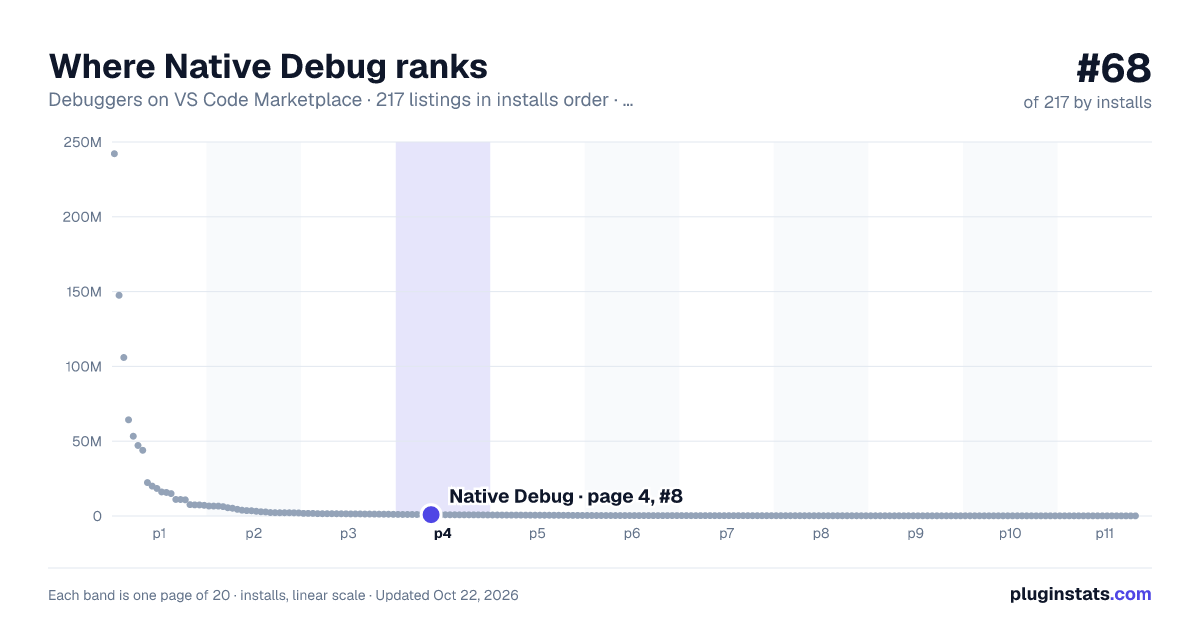

Native Debug installs statistics

Debug

Native VSCode debugger. Supports both GDB and LLDB.

Installation

Press ctrl-p (cmd+p on OS X) and run ext install webfreak.debug in visual studio code and install GDB/LLDB. See Usage for details on how to set it up.

Usage

Or if you already have an existing debugger in your project setup you can click "Create Configuration" or use the auto completion instead:

Open your project and click the debug button in your sidebar. At the top right press the little gear icon and select GDB or LLDB. It will automatically generate the configuration you need.

*Note: for LLDB you need to have lldb-mi in your PATH*

If you are on OS X you can add lldb-mi to your path using ln -s /Applications/Xcode.app/Contents/Developer/usr/bin/lldb-mi /usr/local/bin/lldb-mi if you have Xcode.

Now you need to change target to the application you want to debug relative to the cwd. (Which is the workspace root by default)

Additionally you can set terminal if you want to run the program in a separate terminal with support for input. On Windows set it to an empty string ("") to enable this feature. On linux set it to an empty string ("") to use the default terminal emulator specified with x-terminal-emulator or specify a custom one. Note that it must support the -e argument.

Before debugging you need to compile your application first, then you can run it using the green start button in the debug sidebar. For this you could use the preLaunchTask argument vscode allows you to do. Adding breakpoints while the program runs will not interrupt it immediately. For that you need to pause & resume the program once first. However adding breakpoints while its paused works as expected.

Extending variables is very limited as it does not support child values of variables. Watching expressions works partially but the result does not get properly parsed and it shows the raw output of the command. It will run data-evaluate-expression to check for variables.

While running you will get a console where you can manually type GDB/LLDB commands or MI commands prepended with a hyphen -. The console shows all output separated in stdout for the application, stderr for errors and log for log messages.

Some exceptions/signals like segmentation faults will be caught and displayed but it does not support for example most D exceptions.

Support exists for stopping at the entry point of the application. This is controlled through the stopAtEntry setting. This value may be either a boolean or a string. In the case of a boolean value of false (the default), this setting is disabled. In the case of a boolean value of true, if this is a launch configuration and the debugger supports the start (or exec-run --start MI feature, more specifically), than this will be used to run to the entry point of the application. Note that this appears to work fine for GDB, but LLDB doesn't necessarily seem to adhere to this, even though it may indicate that it supports this feature. The alternative configuration option for the stopAtEntry setting is to specify a string where the string represents the entry point itself. In this situation a temporary breakpoint will be set at the specified entry point and a normal run will occur for a launch configuration. This (setting a temporary breakpoint) is also the behavior that occurs when the debugger does not support the start feature and the stopAtEntry was set to true. In that case the entry point will default to "main". Thus, the most portable way to use this configuration is to explicitly specify the entry point of the application. In the case of an attach configuration, similar behavior will occur, however since there is no equivalent of the start command for attaching, a boolean value of true for the stopAtEntry setting in a launch configuration will automatically default to an entry point of "main", while a string value for this setting will be interpreted as the entry point, causing a temporary breakpoint to be set at that location prior to continuing execution. Note that stopping at the entry point for the attach configuration assumes that the entry point has not yet been entered at the time of attach, otherwise this will have no affect.

Attaching to existing processes

Attaching to existing processes currently only works by specifying the PID in the launch.json and setting request to "attach". You also need to specify the executable path for the debugger to find the debug symbols.

This will attach to PID 4285 which should already run. GDB will pause the program on entering and LLDB will keep it running.

Using gdbserver for remote debugging (GDB only)

You can also connect to a gdbserver instance and debug using that. For that modify the launch.json by setting request to "attach" and remote to true and specifying the port and optionally hostname in target.

This will attach to the running process managed by gdbserver on localhost:2345. You might need to hit the start button in the debug bar at the top first to start the program.

Control over whether the debugger should continue executing on connect can be configured by setting stopAtConnect. The default value is false so that execution will continue after connecting.

Using ssh for debugging on remote

Debugging using ssh automatically converts all paths between client & server and also optionally redirects X11 output from the server to the client. Simply add a ssh object in your launch request.

ssh.sourceFileMap will be used to trim off local paths and map them to the server. This is required for basically everything except watched variables or user commands to work.

For backward compatibility you can also use cwd and ssh.cwd for the mapping, this is only used if the newer ssh.sourceFileMap is not configured.…
